The DC3000 Series Door Closers fulfill security and life safety requirements by ensuring reliable latching for access control and fire code compliance, along with precise adjustability for barrier-free code compliance. Featuring a non-handed design and adjustable spring power sizes 1 through 6, it offers a versatile solution for a wide range of applications.
We can order all available products from Corbin Russwin. For finishes or features not listed in this product page or would like to request factory-direct quote, please email our customer service, sales@elocksets.com, for assistance.
Features
• ANSI/BHMA A156.4, Grade 1
• Multi-size spring power; adjustable 1-6
• Non-handed
• Cast iron body with one-piece seamless steel spring tube
• Standard forged steel arm
• 1-3/8" diameter piston
• Quick-Install™ mounting bracket standard
• Allows door to swing 180° for regular, top jamb and parallel arm mounting (conditions permitting)
• Self-drilling screws standard
• Latching speed, closing speed and backcheck valves standard
• 15-year limited warranty
Specifications
• Closer Type: Surface
• Minimum Door Thickness: 1 3/4"
• Maximum Door Thickness: 2 1/4"
• Minimum Hold Open Degree: 85°
• Maximum Hold Open Degree: 110°
Certifications
• ANSI/BHMA A156.4, Grade 1
• Americans with Disabilities Act (ADA) Compliant
• Buy American Act*
*Domestic Sourcing regulations vary greatly within Federal, state and local government agencies and therefore certain restrictions may apply. Please contact BAACompliance.Americas@assaabloy.com for additional information.
• UL 10C Positive Pressure up to 3 hours
• UL-cUL Listed

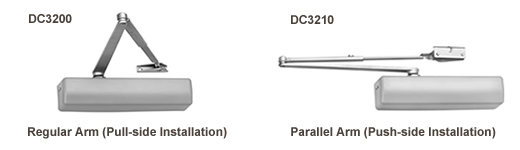

Models
• DC3200 Regular Arm
- Closer is mounted on the pull side, with the arm perpendicular to the face of the door.
- Arm bracket is attached to the door frame.
• DC3210 Parallel Arm
- Allows inside application of closer on out-swinging doors.
- Closer is mounted on the push side, with the arm parallel to the face of the door.
- Arm does not project from the opening.
This product is in stock for immediate shipping.
